Turnstile Entry Systems NYC: Complete Guide to Access Control Turnstiles
Your corporate lobby has badge readers at the doors. You have video surveillance. There's even a security desk. Yet you watch 5-10 people tailgate through for every legitimate entry—unauthorized persons slipping in behind authorized employees, contractors who should have limited access wandering throughout the building, and visitor policies that exist on paper but aren't enforced in practice.
This is the tailgating problem, and traditional door access control cannot solve it. Doors can only detect whether they're being opened—they cannot tell whether one person or ten people pass through.
Leading NYC companies have recognized this vulnerability. They've implemented turnstile entry systems that physically enforce one-person-per-credential access, creating a secure perimeter that door-based access control cannot match.
The Tailgating Problem
Tailgating—also called piggybacking—occurs when unauthorized persons follow authorized users through access-controlled entrances. In NYC's fast-paced building lobbies, tailgating happens constantly:
The scenarios are familiar: An employee badges through the lobby entrance. Three coworkers rush to catch the door, calling "Thanks!" They might all be authorized, or they might not—the system has no way to tell. A well-dressed person carrying a laptop bag waits near the entrance. When an employee badges in, they confidently stride through behind them. Employees assume anyone who looks professional belongs in the building. A delivery person arrives with packages during morning rush hour when dozens of employees are entering. Someone holds the door "to be nice," and the delivery person gains unrestricted building access.
Security implications of uncontrolled entry:
Once inside, tailgaters have opportunities for: theft of equipment, documents, or personal property, access to confidential information left on desks or screens, corporate espionage—competitors gathering intelligence, workplace violence—former employees or threats gaining access, and vandalism or sabotage.
The problem extends beyond intentional threats. Well-meaning employees hold doors for others carrying coffee or packages, creating security gaps. Cultural norms around politeness conflict with security policy—it feels rude to let doors close in someone's face.
Liability and compliance concerns:
Organizations face legal liability when inadequate security allows incidents. After workplace violence or theft, investigators ask whether reasonable security measures were in place. If basic access control was routinely defeated through tailgating, organizations may face negligence claims.
Compliance frameworks increasingly expect physical security controls. SOC 2 audits verify that access to sensitive areas is controlled. ISO 27001 requires organizations to prevent unauthorized physical access. Healthcare facilities must demonstrate HIPAA compliance including physical safeguards.
When does tailgating risk justify turnstile investment?
Consider turnstiles when: your building houses high-value assets or sensitive information, you have documented security incidents related to unauthorized access, compliance requirements mandate verified entry, you need audit trails proving only authorized persons entered, or traditional access control has proven insufficient.
The guard vs. turnstile cost-benefit analysis:
Some buildings position security guards to prevent tailgating. However, guards present challenges: annual cost of $60,000-100,000 per guard position (including benefits), inconsistent enforcement—guards get distracted or tired, human limitations—guards can't perfectly monitor every entry, and limited audit trail—guards may not log every entry.
Turnstile entry systems cost $15,000-50,000 per lane initially, with minimal ongoing costs. A three-lane turnstile installation might cost $120,000—equivalent to one guard's annual salary—but provides 24/7 enforcement for 10+ years. The ROI favors turnstiles for most applications.
Types of Turnstile Entry Systems
Turnstiles vary significantly in security level, throughput capacity, and aesthetics. Understanding the options helps select appropriate solutions.

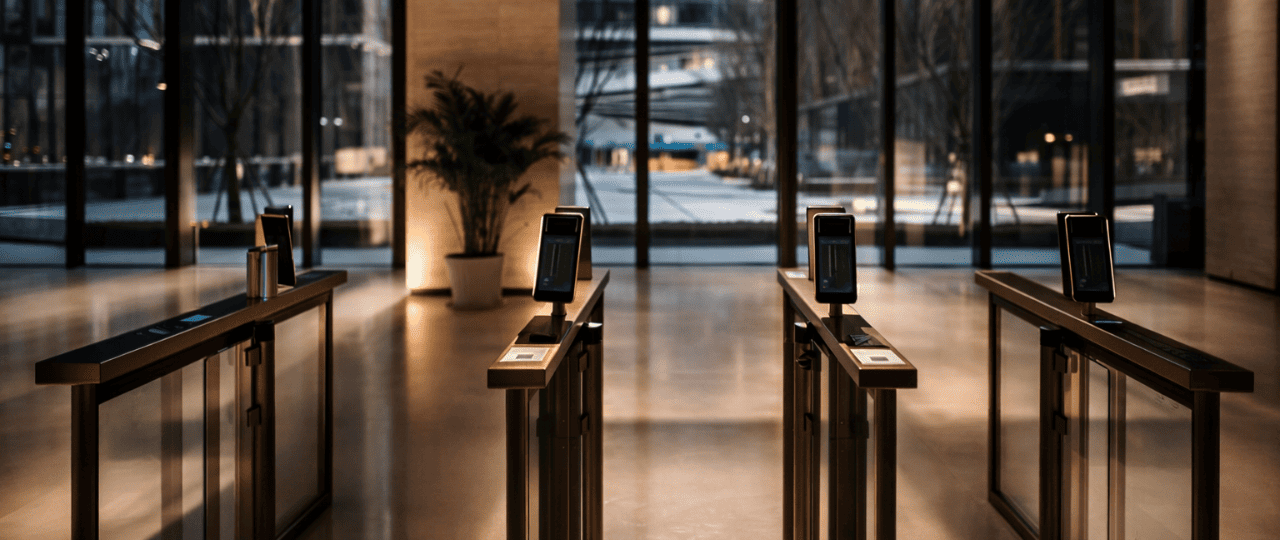

Optical Turnstiles
How they work: Optical turnstiles use infrared beam arrays and sensors to detect people passing through. When someone presents valid credentials, the system momentarily allows passage. Multiple IR beams track movement through the lane, detecting if multiple people attempt to pass on one credential.
Pros:
Aesthetic appeal—glass and stainless steel designs suit upscale lobbies
Fast throughput—30-40 people per minute per lane
ADA compliant—wide enough for wheelchairs without separate accessible lanes
Minimal footprint—some models are just 4 inches deep
Quiet operation—no mechanical noise
Cons:
Can be defeated by determined individuals willing to break the beams
Requires monitoring—alarms sound when violated, but physical enforcement relies on security response
Higher cost—$15,000-35,000 per lane
Best applications: Optical turnstiles excel in: corporate lobbies of Class A office buildings where aesthetics matter, environments with high legitimate traffic volumes, buildings with dedicated security staff to respond to alarms, and areas where the presence of security measures provides sufficient deterrence.
Integration with access control credentials: Optical turnstiles integrate seamlessly with all credential types—cards, fobs, mobile credentials, and biometrics. Modern systems can require multiple factor authentication: credential plus PIN, or credential plus facial recognition.
Waist-High Turnstiles
Tripod vs. swing gate designs: Tripod turnstiles feature three rotating arms forming a Y-shape. They're compact and cost-effective but provide moderate security—people can jump over with effort. Swing gate turnstiles use swinging barriers that open after authentication. They offer better ADA accessibility and throughput than tripods while providing physical barriers to unauthorized entry.
Physical barrier advantages: Unlike optical turnstiles that can be violated by walking through alarms, waist-high turnstiles present actual physical barriers. Defeating them requires obvious action—jumping or forcing the mechanism—which deters most casual tailgating.
Throughput considerations: Tripod turnstiles allow 15-25 people per minute per lane. Swing gates handle 20-30 per minute. This makes them suitable for moderate-traffic environments like office buildings, gyms, and schools.
Applications: Waist-high turnstiles work well in: gyms and fitness centers managing member access, schools controlling student entry, industrial facilities with moderate security needs, secondary entrances in office buildings, and parking garage pedestrian entries.
ADA considerations and accessible lanes: Standard tripod turnstiles are too narrow for wheelchairs. Facilities using tripods must provide separate accessible lanes—typically a swing gate or supervised door. This adds cost and complexity. Wider swing gate turnstiles can accommodate wheelchairs, eliminating the need for separate accessible entries.
Full-Height Turnstiles
Maximum security option: Full-height turnstiles extend from floor to ceiling (or floor to 7+ feet), creating rotating cage-style barriers. They provide the highest security among turnstile options—virtually impossible to defeat without causing obvious damage.
When they're necessary: Full-height turnstiles suit: critical infrastructure facilities (power plants, water treatment), data centers with stringent security requirements, high-security government and military installations, utility company facilities, and correctional facility perimeters.
Weatherproofing for outdoor applications: Many full-height installations occur outdoors at facility perimeters. Manufacturers offer weatherproof models with corrosion-resistant materials, sealed mechanisms protected from elements, and heating elements to prevent ice formation in cold climates—essential for NYC winters.
Emergency egress considerations: Fire codes require that turnstiles allow free egress during emergencies. Full-height turnstiles integrate with fire alarm systems—when alarms activate, turnstiles automatically rotate to allow free exit. Regular testing of this life safety function is critical.
Speed Gates
Premium solution for high-traffic areas: Speed gates represent the evolution of optical turnstiles. They combine aesthetics with faster throughput—40-50 people per minute per lane. Barriers retract into the floor or cabinet when not in use, creating an open appearance. When someone approaches without valid credentials, barriers rise in milliseconds.
Glass barrier systems: Many speed gates use floor-to-ceiling glass barriers for maximum security while maintaining visibility and aesthetics. The glass is tempered and reinforced to resist forcing. Some models integrate video screens in the glass panels for wayfinding or advertising.
Integration capabilities: Speed gates typically include advanced integration: facial recognition cameras for biometric verification, weight sensors to detect if multiple people are in the lane, built-in video surveillance for evidence collection, and sophisticated software for analytics and reporting.
Cost considerations: Speed gates are premium solutions—$35,000-70,000 per lane. However, for high-profile corporate headquarters, government buildings, or facilities where security and aesthetics both matter, they represent the best option.
Mantraps and Security Vestibules
Ultimate access control: For the highest security requirements, mantraps create air lock-style entries. Users enter a vestibule and the entry door closes behind them. Only after authentication—often including biometric verification and sometimes security interview—does the exit door unlock.
Two-door interlock systems: Mantraps ensure only one door can be open at a time. If someone forces entry through the first door, the second door remains locked, trapping them in the vestibule. This prevents both tailgating and forcible entry.
When they're required: Mantrap entry systems are necessary for: data centers hosting classified or highly sensitive information, pharmaceutical research facilities, defense contractors, cash processing centers, and high-security government facilities.
NYC applications: Several NYC financial institutions use mantraps for trading floors and sensitive data areas. Tech companies in Hudson Yards and the Flatiron District implement mantraps for proprietary research spaces.
Integration with Access Control Systems
Turnstiles don't operate in isolation—they're components of comprehensive access control architectures.
Credential compatibility: Modern turnstile entry systems work with all credential types:
Cards and key fobs (125kHz Prox, 13.56MHz smart cards)
Mobile credentials via Bluetooth or NFC
Biometric authentication (fingerprint, facial recognition, iris scan)
QR codes for temporary visitor access
Multi-factor combinations (card + PIN, mobile + biometric)
Two-way vs. one-way operation: Entry-only turnstiles allow passage in one direction—typically into a building. Two-way turnstiles control both entry and exit, providing anti-passback functionality. Users must badge both in and out, preventing credential sharing. Anti-passback ensures someone cannot badge in, pass their credential back outside, and have another person use it to enter.
Visitor management integration: Effective turnstile systems integrate with visitor management platforms:
Visitor arrives and checks in at reception desk
Security system creates temporary visitor credential
Visitor receives badge or QR code
Turnstile grants access based on visitor credential
System tracks visitor movement throughout the facility
Visitor credential automatically expires after visit window
Visitor must check out through turnstiles when departing
Video surveillance integration: Cameras positioned at turnstile lanes serve multiple purposes:
Visual verification—security staff can see who's entering
Alarm assessment—when turnstiles alarm for violations, video shows what happened
Evidence collection—stored video aids investigations
Deterrence—visible cameras discourage violation attempts
Advanced systems use video analytics to: detect if multiple people are in one lane, identify known individuals via facial recognition, and flag unusual behavior patterns.
Alarm monitoring and response: Turnstiles generate various alarms requiring different responses:
Tailgating detected—IR beams sense two people passed on one credential
Forced entry—someone pushed through without authentication
Door held open—someone is blocking the lane
Multiple failed access attempts—unauthorized person trying to gain entry
Credential duplication detected—anti-passback violation
Security operations centers receive these alarms in real-time, allowing immediate response.
Real-time analytics and reporting: Modern turnstile systems generate valuable data:
Peak traffic times for staffing optimization
Individual throughput rates by credential type
Failed access attempts by location and time
Visitor volume trends
Compliance reports showing all entry/exit events
This data supports both security operations and business decisions—understanding building population aids emergency planning, space utilization analysis, and resource allocation.
NYC-Specific Considerations
Implementing turnstile solutions in New York City requires addressing unique challenges:
Fire code requirements (free egress): NYC fire code mandates free egress during emergencies. Turnstiles must integrate with fire alarm systems to automatically allow exit when alarms activate. This requires: electrical connections between the fire alarm panel and turnstile controls, regular testing of the free egress function during fire drills, backup power to ensure turnstiles can unlock during power failures, and documentation proving compliance for building inspections.
ADA compliance (accessible lanes): The Americans with Disabilities Act requires accessible entry for people with disabilities. Compliance options include: wide-lane turnstiles that accommodate wheelchairs, separate accessible lanes adjacent to standard turnstiles, or swing gates meeting ADA width requirements (minimum 32 inches clear).
Accessible lanes must have: card readers mounted at appropriate heights (no higher than 48 inches), adequate maneuvering clearance on both sides, and equivalent security to standard lanes.
Building code requirements: NYC building codes specify means of egress requirements affecting turnstile placement: turnstiles cannot reduce required exit width below code minimums, exit path must be obvious and not require special knowledge, and signage must clearly indicate exit routes.
Historic building constraints: Many NYC buildings have landmark status or historic significance. Installing turnstiles in these buildings requires: approval from the Landmarks Preservation Commission for exterior-visible changes, sensitivity to historic architectural features, reversible installations that don't permanently alter historic fabric, and aesthetic choices that complement historic design.
Sidewalk/public space regulations: Turnstiles in lobbies open to public areas (like ground-floor retail with office access) must comply with: sidewalk café rules if lobbies open to pedestrian areas, zoning requirements for publicly accessible private spaces (POPS), and building access obligations in mixed-use developments.
Landmark building considerations: Installing turnstiles in landmark buildings like the Woolworth Building or Chrysler Building requires special care: the aesthetic must respect the building's historic character, installations must be reversible, no permanent alteration to protected architectural features, and approval from appropriate authorities before work begins.
Working with NYC DOB: Most turnstile installations require permits from the NYC Department of Buildings: electrical permits for power and fire alarm integration, construction permits for floor anchoring and ceiling connections, and fire alarm work permits for life safety integration.
Connextivity manages the entire permitting process, ensuring compliance with all NYC requirements.
Planning and Implementation
Successful turnstile projects require thorough planning:
Assessment Phase
Traffic flow analysis: Understanding current and future traffic patterns is critical. Count people entering during peak periods (typically 8-9 AM, 12-1 PM, 5-6 PM). Identify traffic surges—when large meetings end, multiple people exit simultaneously. Document visitor volumes—buildings with high visitor traffic need more lanes. Consider event scenarios—buildings hosting conferences or large meetings need extra capacity.
Peak hour throughput requirements: Each turnstile lane has maximum throughput. If 200 employees arrive during a 30-minute morning peak, and optical turnstiles handle 35 people per minute, you need: 200 people ÷ 30 minutes = 6.67 people per minute minimum. Add 50% safety margin: 10 people per minute. One lane suffices, but two lanes provide redundancy and handle surges.
Space constraints and layout: Measure available lobby space carefully. Turnstiles require: minimum 36-48 inches width per lane (varies by model), 96-120 inches depth including approach and exit space, and clearance for ADA accessible lanes.
Consider traffic flow patterns—turnstiles should align with natural movement through the lobby, not create congestion or confusion.
Power and network infrastructure: Turnstiles require: 120V electrical power for motors and controls, network connectivity for access control integration (Ethernet preferred), and backup power connections to emergency systems for life safety functions.
Verify these services are available at the desired turnstile location. Adding new electrical or network drops increases project cost.
Aesthetic requirements: Turnstiles make bold visual statements in lobbies. Consider: building aesthetic—contemporary, traditional, or industrial design, material choices—glass, stainless steel, wood accents, powder-coated finishes, branding opportunities—custom colors or integrated logos, and visibility—should security be obvious or subtle?
Design Considerations
Number of lanes needed: Balance throughput, space, and budget. General guidelines:
Buildings under 100 occupants: 1-2 lanes
Buildings 100-500 occupants: 2-4 lanes
Buildings 500-1,000 occupants: 4-6 lanes
Buildings over 1,000 occupants: 6+ lanes
Add lanes for visitor traffic if significant.
Lane width and spacing: Standard lanes: 24-36 inches, accessible lanes: 36-42 inches minimum, and spacing between lanes: 4-8 inches depending on cabinet design.
Accessible lane placement: Position accessible lanes at the end of turnstile arrays for easiest access. Ensure adequate approach and maneuvering space. Make accessible lanes visually obvious with signage.
Emergency egress planning: Ensure turnstiles don't obstruct required egress paths. Calculate egress capacity with turnstiles in free-egress mode. Provide alternative exits if turnstiles reduce egress width below code requirements. Test emergency egress regularly.
Queue management: Prevent congestion with: clear signage directing people to open lanes, stanchions or floor markings organizing queues, separate visitor check-in areas to avoid mixing with employee traffic, and monitors or apps showing real-time lane status.
Visitor vs. employee lanes: Some installations dedicate specific lanes to visitors. This allows: different authentication processes (visitors use QR codes, employees use cards), faster throughput for employees, and better visitor experience—visitors don't feel rushed by employees behind them.
Installation Requirements
Floor requirements: Most turnstiles require floor anchoring for stability and security. This involves: core drilling into concrete floors (typically 4-8 anchor points per lane), floor reinforcement for heavy turnstile models, and finished floor patching and refinishing.
In buildings where floor penetrations aren't allowed, surface-mounted turnstiles using weighted bases are available but less secure.
Electrical and network drops: Each turnstile lane needs: dedicated electrical circuit (typically 15-20 amp), network connection (Cat6 Ethernet preferred), and fire alarm system connection for life safety integration.
Plan for cable routing from server rooms or electrical closets to turnstile locations. In finished lobbies, concealed conduit maintains aesthetics.
Integration with existing systems: Turnstiles must integrate with: access control systems for credential verification, video surveillance for security monitoring, visitor management for guest access, fire alarm systems for emergency egress, and building management systems for status monitoring.
Commissioning and testing: Professional commissioning includes: testing every credential type at every lane, verifying alarm functions (tailgating, forced entry, etc.), testing emergency egress during fire alarm activation, load testing with realistic traffic volumes, integration testing with all connected systems, and training security staff and building management.
Staff training: Effective training covers: normal operation procedures, responding to various alarms, managing visitor access, troubleshooting common issues, and emergency procedures.
Choosing Qualified Turnstile Installers
Turnstile installation requires specialized expertise:
Why turnstile installation requires expertise: Mistakes cost money and compromise security: improper floor anchoring creates safety hazards, poor network integration causes reliability issues, inadequate fire alarm integration violates life safety codes, and wrong turnstile selection for the application wastes investment.
Certifications to look for: Qualified turnstile companies and installers should have: manufacturer certifications for specific turnstile brands, security industry certifications (CPP, CSPM), electrical licensing (required in NYC), and building code knowledge specific to NYC.
Experience with specific building types: Turnstile requirements differ by building type. Look for installers with experience in your sector: corporate offices, residential buildings, healthcare facilities, data centers, or government installations.
Integration capability: The best turnstile installers don't just install turnstiles—they integrate complete solutions. Verify capability integrating with: your access control platform, video surveillance systems, visitor management, fire alarm systems, and building management systems.
Support and maintenance offerings: Turnstiles are mechanical systems requiring ongoing maintenance: routine lubrication and adjustment, component replacement as parts wear, software updates and patches, and 24/7 emergency service for system failures.
Choose installers offering comprehensive service contracts.
Red flags in turnstile companies: Avoid companies that: recommend specific models without assessing your needs, lack experience with NYC building codes, can't explain integration with your existing systems, offer unusually low pricing (quality turnstiles and installation cost money), or don't provide maintenance and support services.
Maintenance and Lifecycle Costs
Understanding long-term costs helps budget appropriately:
Ongoing maintenance requirements: Turnstiles need regular maintenance: monthly—visual inspection, lubrication of moving parts, testing of all sensors, and quarterly—comprehensive mechanical inspection, software updates, integration testing, and annually—complete system test including emergency functions, recalibration of sensors, and preventive part replacement.
Common repair needs: Expected repairs over a turnstile's life include: sensor replacement (optical sensors degrade over time), motor and gearbox service (wear from constant use), credential reader updates (technology evolves), and cosmetic repairs (scratches, dents in high-traffic areas).
Service contract considerations: Most organizations purchase service contracts covering: preventive maintenance visits, emergency repairs, parts replacement, software updates, and 24/7 technical support.
Annual service contracts typically cost 10-15% of initial turnstile cost. For a $30,000 turnstile installation, expect $3,000-4,500 annually for comprehensive service.
Lifecycle expectations by turnstile type: With proper maintenance: optical turnstiles last 10-15 years before requiring major refurbishment, waist-high mechanical turnstiles last 15-20 years, and full-height turnstiles last 20+ years.
Technology obsolescence may drive replacement before mechanical failure—10-year-old turnstiles may not support modern mobile credentials or biometric integration.
Upgrade paths: Many turnstile manufacturers offer upgrade programs: replace electronic components while keeping mechanical assemblies, add new authentication methods to existing turnstiles, or integrate additional sensors or features.
Planning for upgrades extends system life and protects investment.
Connextivity's Turnstile Solutions
At Connextivity, we bring comprehensive expertise to turnstile access control systems:
Full integration with building access control: We don't install standalone turnstiles. Every Connextivity turnstile project integrates with comprehensive building security: coordinated credential management across all access points, unified video surveillance and access control, visitor management integration, and emergency response coordination.
NYC code compliance expertise: Our team knows NYC codes inside and out: Department of Buildings permit requirements, fire code compliance for emergency egress, ADA accessibility standards, and landmark building considerations.
Assessment-driven recommendations: We begin every project with thorough assessment: site survey including existing conditions and constraints, traffic analysis understanding your peak volumes, needs analysis clarifying security requirements, and budget planning balancing security needs with fiscal reality.
Only after this assessment do we recommend specific turnstile solutions.
Is Your Building Ready for Turnstile Entry Systems?
Ask yourself:
Do unauthorized persons regularly follow employees through your doors? Have you experienced security incidents related to unauthorized building access? Do compliance requirements mandate verified entry? Could you defend your current security measures if an incident occurred? Does your building house high-value assets or sensitive information?
If you answered yes to any of these questions, turnstile access control deserves serious consideration.
Considering turnstiles? Schedule a site assessment and traffic flow analysis.
Contact Connextivity for a comprehensive turnstile consultation. Our security engineers will: assess your lobby space and traffic patterns, understand your security requirements and compliance needs, recommend appropriate turnstile solutions, provide detailed cost estimates including installation and ongoing maintenance, and explain integration with your existing access control systems.
Because in NYC's security-conscious environment, your building's first line of defense should do more than detect access—it should physically enforce it.
